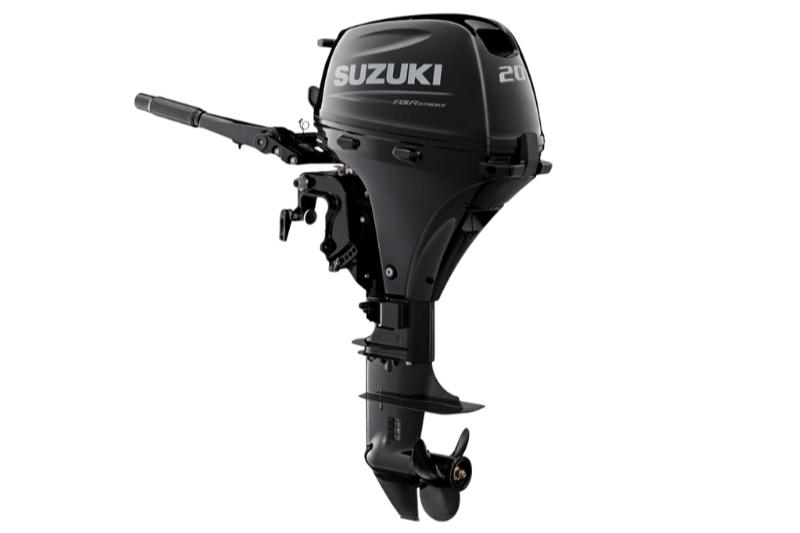

The Suzuki DF20AES5 is a lightweight, fuel-efficient 4-stroke outboard motor designed for small to medium-sized boats, dinghies, and tenders. It combines power, reliability, and ease of use, making it an excellent choice for recreational boaters and fishermen alike. Below are the key specifications for the Suzuki DF20AES5:

Key Specifications:

• Engine Type: 4-Stroke, SOHC (Single Overhead Cam), 2 Cylinders
• Displacement: 327 cm³ (19.9 cubic inches)
• Bore x Stroke: 65.0 mm x 60.0 mm
• Max Horsepower: 20 HP @ 5,500 RPM
• Max RPM Range: 5,000 - 6,000 RPM
• Fuel Delivery System: Carburetor
• Ignition System: Transistorized CDI (Capacitor Discharge Ignition)
• Starting System: Electric Start
• Trim and Tilt System: Power Tilt
• Gear Ratio: 2.08:1
• Weight (Approx.): 126 lbs (57.2 kg)
• Fuel Tank Capacity: 12L (3.2 gallons) internal fuel tank
• Lubrication System: Wet Sump
• Cooling System: Water-Cooled with Thermostat
• Alternator Output: 6 Amps
• Engine Oil Capacity: 1.1 liters (1.16 US quarts)

Notable Features:

• Electric Start: The DF20AES5 features an electric start system, allowing for easy and convenient starting, especially useful for those who prefer not to rely on a manual start.
• Power Tilt: The power tilt system enables quick and efficient adjustments to the motor's tilt position, improving performance, fuel efficiency, and ease of operation in varying conditions.
• Lightweight and Compact: Weighing just 126 lbs (57.2 kg), the DF20AES5 is lightweight and easy to handle, making it ideal for small to medium-sized boats and tenders.
• Fuel Efficiency: The carbureted fuel system ensures excellent fuel efficiency, allowing you to enjoy longer periods on the water without frequent refueling.
• Corrosion Protection: Suzuki’s anti-corrosion technology is built into the DF20AES5, ensuring that the engine withstands the harsh conditions of saltwater environments while maintaining its durability and longevity.
• 360-Degree Rotating Tiller Handle: The 360-degree rotating tiller provides excellent maneuverability, allowing precise control of the boat, especially in tight spaces.
• Quiet Operation: As a 4-stroke engine, the DF20AES5 operates more quietly than 2-stroke engines, offering a smoother and more comfortable boating experience.
• Durable Construction: Built for durability and reliability, the DF20AES5 requires minimal maintenance, ensuring that boaters spend more time on the water and less time performing upkeep.
