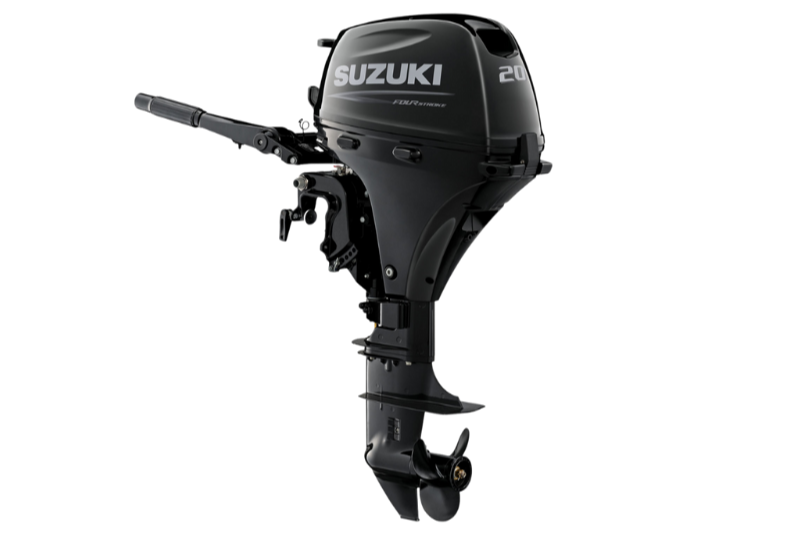

The Suzuki DF20AS5 is a lightweight, reliable, and fuel-efficient 4-stroke outboard motor designed for small to medium-sized boats, dinghies, and tenders. It combines power, efficiency, and ease of use, making it an excellent choice for various water activities. Below are the key specifications for the Suzuki DF20AS5:
Key Specifications:
- Engine Type: 4-Stroke, SOHC (Single Overhead Cam), 2 Cylinders
- Displacement: 327 cm³ (19.9 cubic inches)
- Bore x Stroke: 65.0 mm x 60.0 mm
- Max Horsepower: 20 HP @ 5,500 RPM
- Max RPM Range: 5,000 - 6,000 RPM
- Fuel Delivery System: Carburetor
- Ignition System: Transistorized CDI (Capacitor Discharge Ignition)
- Starting System: Manual Start
- Trim and Tilt System: Manual Tilt
- Gear Ratio: 2.08:1
- Weight (Approx.): 126 lbs (57.2 kg)
- Fuel Tank Capacity: 12L (3.2 gallons) internal fuel tank
- Lubrication System: Wet Sump
- Cooling System: Water-Cooled with Thermostat
- Alternator Output: 6 Amps
- Engine Oil Capacity: 1.1 liters (1.16 US quarts)
Notable Features:
- Manual Start: The DF20AS5 is equipped with a manual start system, which offers simple and reliable starting for those who prefer a straightforward approach.
- Lightweight and Compact Design: Weighing only 126 lbs (57.2 kg), the DF20AS5 is designed for easy transport and handling, making it ideal for small to medium-sized boats.
- Fuel Efficiency: The carbureted fuel system ensures that the engine delivers great fuel economy, allowing boaters to enjoy longer periods on the water with fewer refueling stops.
- Corrosion Protection: Suzuki’s anti-corrosion technology protects the engine in harsh saltwater conditions, with features like a durable finish and sacrificial anodes to help prevent rust and corrosion.
- 360-Degree Rotating Tiller: The DF20AS5 features a 360-degree rotating tiller handle, providing excellent control and maneuverability in tight spaces or while navigating tricky waterways.
- Quiet Operation: As a 4-stroke engine, the DF20AS5 runs quietly and smoothly compared to traditional 2-stroke engines, enhancing the overall boating experience with reduced engine noise.
- Durable and Low Maintenance: Designed with durability and low maintenance in mind, the DF20AS5 is built to provide reliable performance over time, reducing the need for frequent servicing.
