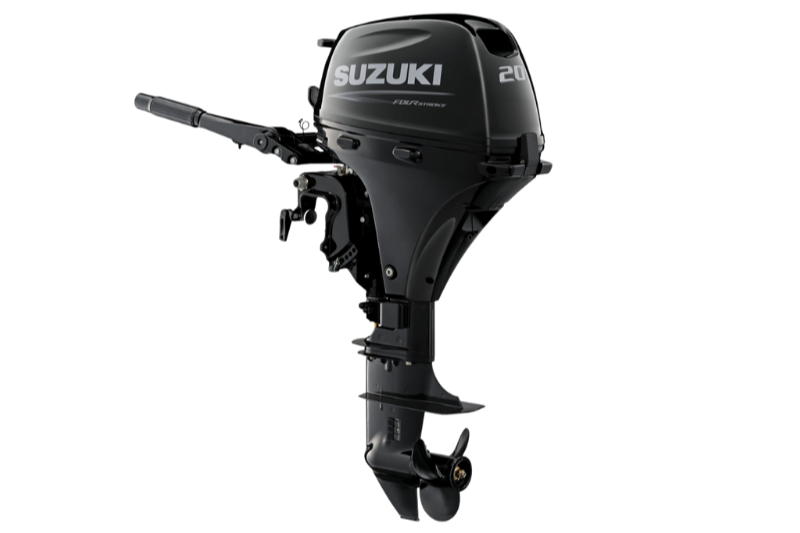

The Suzuki DF20ATHL5 is a 4-stroke outboard motor designed for small to medium-sized boats, such as dinghies, tenders, and lightweight fishing boats. It offers a combination of fuel efficiency, reliability, and lightweight design, making it ideal for various recreational boating activities. Below are the key specifications for the Suzuki DF20ATHL5:
Key Specifications:
- Engine Type: 4-Stroke, SOHC (Single Overhead Cam), 2 Cylinders
- Displacement: 327 cm³ (19.9 cubic inches)
- Bore x Stroke: 65.0 mm x 60.0 mm
- Max Horsepower: 20 HP @ 5,500 RPM
- Max RPM Range: 5,000 - 6,000 RPM
- Fuel Delivery System: Carburetor
- Ignition System: Transistorized CDI (Capacitor Discharge Ignition)
- Starting System: Manual Start
- Trim and Tilt System: Manual Tilt
- Gear Ratio: 2.08:1
- Weight (Approx.): 126 lbs (57.2 kg)
- Fuel Tank Capacity: 12L (3.2 gallons) internal fuel tank
- Lubrication System: Wet Sump
- Cooling System: Water-Cooled with Thermostat
- Alternator Output: 6 Amps
- Engine Oil Capacity: 1.1 liters (1.16 US quarts)
Notable Features:
- Manual Start: The DF20ATHL5 features a manual start system, providing a reliable and straightforward way to start the engine.
- Lightweight Design: Weighing only 126 lbs (57.2 kg), this engine is designed for portability, making it ideal for small boats, dinghies, and tenders.
- Fuel Efficiency: The carbureted fuel system ensures good fuel economy, allowing boaters to enjoy extended periods on the water before needing to refuel.
- Corrosion Protection: The engine incorporates Suzuki's advanced anti-corrosion technology, making it durable and long-lasting, even in saltwater conditions.
- 360-Degree Rotating Tiller Handle: The 360-degree rotating tiller provides easy maneuverability and precise control, making it simpler to navigate tight spaces.
- Quiet Operation: The 4-stroke design ensures smooth and quiet operation, which is ideal for peaceful boating experiences without the noise typical of 2-stroke engines.
- Durability and Reliability: Built for long-term performance, the DF20ATHL5 is designed to require minimal maintenance, allowing boaters to enjoy their time on the water with fewer interruptions.
