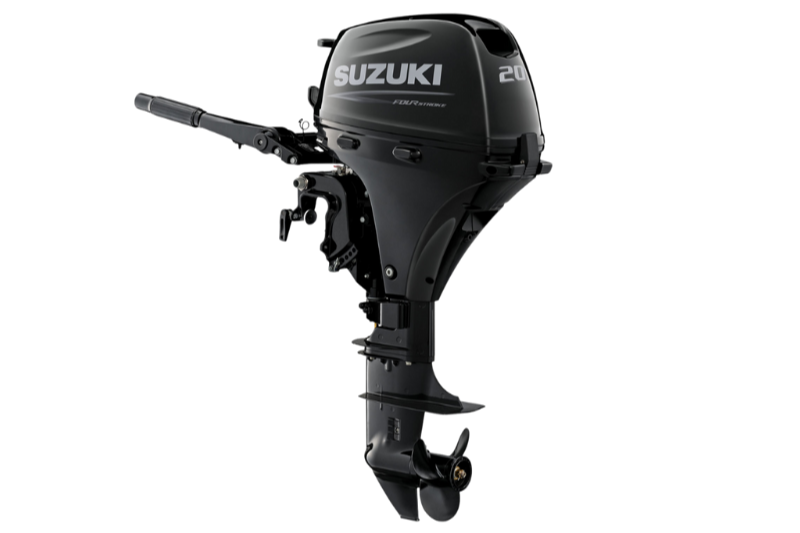

The Suzuki DF20ATL5 is a reliable, fuel-efficient, and powerful 4-stroke outboard motor designed for small to medium-sized boats, including dinghies, tenders, and lightweight fishing boats. It is known for its performance, ease of use, and durability, making it ideal for recreational boating and other on-water activities. Below are the key specifications for the Suzuki DF20ATL5:
Key Specifications:
- Engine Type: 4-Stroke, SOHC (Single Overhead Cam), 2 Cylinders
- Displacement: 327 cm³ (19.9 cubic inches)
- Bore x Stroke: 65.0 mm x 60.0 mm
- Max Horsepower: 20 HP @ 5,500 RPM
- Max RPM Range: 5,000 - 6,000 RPM
- Fuel Delivery System: Carburetor
- Ignition System: Transistorized CDI (Capacitor Discharge Ignition)
- Starting System: Manual Start
- Trim and Tilt System: Manual Tilt
- Gear Ratio: 2.08:1
- Weight (Approx.): 126 lbs (57.2 kg)
- Fuel Tank Capacity: 12L (3.2 gallons) internal fuel tank
- Lubrication System: Wet Sump
- Cooling System: Water-Cooled with Thermostat
- Alternator Output: 6 Amps
- Engine Oil Capacity: 1.1 liters (1.16 US quarts)
Notable Features:
- Manual Start: The DF20ATL5 comes with a manual start system, offering a traditional and reliable method for starting the engine.
- Lightweight Design: At only 126 lbs (57.2 kg), this engine is compact and easy to handle, making it a great option for small to medium-sized boats and tenders.
- Fuel Efficiency: The carbureted fuel system ensures excellent fuel efficiency, allowing boaters to enjoy longer trips without needing to frequently refuel.
- Corrosion Protection: The DF20ATL5 is designed with Suzuki’s advanced corrosion-resistant technology, making it durable and reliable even in harsh saltwater environments.
- 360-Degree Rotating Tiller Handle: The 360-degree rotating tiller provides excellent maneuverability and control, making it easier to navigate tight spaces or narrow waterways.
- Quiet Operation: Being a 4-stroke engine, the DF20ATL5 operates much quieter than traditional 2-stroke engines, providing a more comfortable and peaceful boating experience.
- Durability and Low Maintenance: Engineered for long-term performance, the DF20ATL5 is built to require minimal maintenance, reducing the amount of time and effort spent on upkeep.
