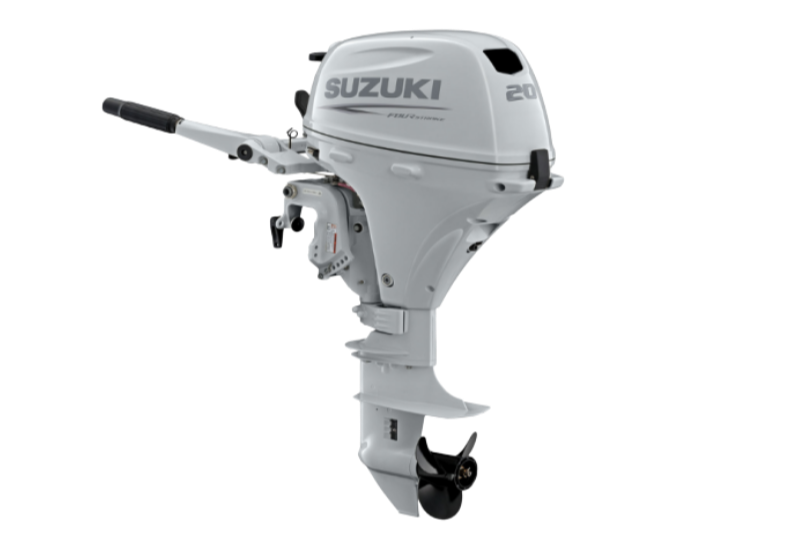

The Suzuki DF20ATLW5 is a 4-stroke outboard motor designed for small to medium-sized boats such as dinghies, tenders, and lightweight fishing boats. It combines Suzuki's reputation for fuel efficiency, reliability, and compact design, making it an excellent choice for recreational boating and water sports. Below are the key specifications for the Suzuki DF20ATLW5:

Key Specifications:

• Engine Type: 4-Stroke, SOHC (Single Overhead Cam), 2 Cylinders
• Displacement: 327 cm³ (19.9 cubic inches)
• Bore x Stroke: 65.0 mm x 60.0 mm
• Max Horsepower: 20 HP @ 5,500 RPM
• Max RPM Range: 5,000 - 6,000 RPM
• Fuel Delivery System: Carburetor
• Ignition System: Transistorized CDI (Capacitor Discharge Ignition)
• Starting System: Electric Start
• Trim and Tilt System: Power Tilt
• Gear Ratio: 2.08:1
• Weight (Approx.): 126 lbs (57.2 kg)
• Fuel Tank Capacity: 12L (3.2 gallons) internal fuel tank
• Lubrication System: Wet Sump
• Cooling System: Water-Cooled with Thermostat
• Alternator Output: 6 Amps
• Engine Oil Capacity: 1.1 liters (1.16 US quarts)

Notable Features:

• Electric Start: The DF20ATLW5 comes equipped with an electric start, making it easy and convenient to start the engine with the push of a button.
• Power Tilt: The power tilt system provides easy adjustment of the motor’s angle, optimizing fuel efficiency and performance in varying water conditions.
• Lightweight and Compact: At just 126 lbs (57.2 kg), the DF20ATLW5 is designed to be lightweight and portable, ideal for small to medium-sized boats.
• Fuel Efficiency: The carbureted fuel system ensures excellent fuel economy, offering long operating times between refueling, which is particularly useful for longer trips or extended use.
• Corrosion Protection: Designed with Suzuki's advanced corrosion-resistant technology, this outboard is durable and reliable even in saltwater environments.
• 360-Degree Rotating Tiller Handle: The 360-degree rotating tiller handle enhances maneuverability, providing precise control, especially when navigating tight spaces or narrow waterways.
• Quiet Operation: As a 4-stroke engine, the DF20ATLW5 operates more quietly than traditional 2-stroke engines, making it ideal for a peaceful and enjoyable boating experience.
• Durability and Low Maintenance: The DF20ATLW5 is engineered for durability and minimal maintenance, reducing the time boaters need to spend on engine upkeep.
