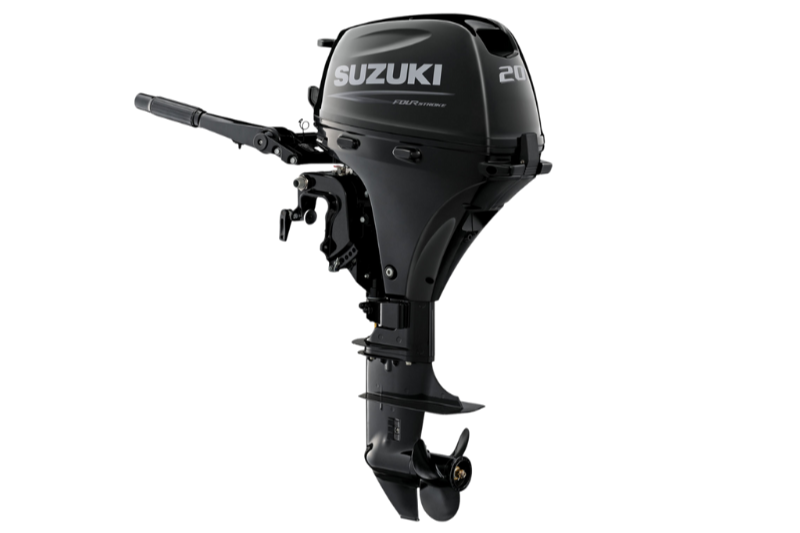

The Suzuki DF20ATS5 is a compact, fuel-efficient, and powerful 4-stroke outboard motor designed for small to medium-sized boats, tenders, and dinghies. It combines Suzuki’s reliability with advanced features, making it an excellent choice for recreational boating, fishing, and other on-water activities. Below are the key specifications for the Suzuki DF20ATS5:

Key Specifications:

• Engine Type: 4-Stroke, SOHC (Single Overhead Cam), 2 Cylinders
• Displacement: 327 cm³ (19.9 cubic inches)
• Bore x Stroke: 65.0 mm x 60.0 mm
• Max Horsepower: 20 HP @ 5,500 RPM
• Max RPM Range: 5,000 - 6,000 RPM
• Fuel Delivery System: Carburetor
• Ignition System: Transistorized CDI (Capacitor Discharge Ignition)
• Starting System: Electric Start
• Trim and Tilt System: Power Tilt
• Gear Ratio: 2.08:1
• Weight (Approx.): 126 lbs (57.2 kg)
• Fuel Tank Capacity: 12L (3.2 gallons) internal fuel tank
• Lubrication System: Wet Sump
• Cooling System: Water-Cooled with Thermostat
• Alternator Output: 6 Amps
• Engine Oil Capacity: 1.1 liters (1.16 US quarts)

Notable Features:

• Electric Start: The DF20ATS5 comes with an electric start system, offering convenience and ease of starting, making it ideal for boaters who prefer the simplicity of push-button ignition.
• Power Tilt: The power tilt system allows for easy adjustment of the motor’s trim, optimizing performance and fuel efficiency for different operating conditions.
• Lightweight and Compact: Weighing only 126 lbs (57.2 kg), this motor is highly portable and easy to handle, making it an excellent choice for smaller boats and tenders.
• Fuel Efficiency: The carbureted fuel system ensures good fuel economy, allowing boaters to enjoy extended trips on the water before refueling is necessary.
• Corrosion Protection: Designed with Suzuki’s corrosion-resistant technology, the DF20ATS5 is built to endure the harshest saltwater environments, ensuring longevity and reliable performance.
• 360-Degree Rotating Tiller: The 360-degree rotating tiller handle provides superior control and maneuverability, especially in tight spaces or when navigating narrow waterways.
• Quiet Operation: As a 4-stroke engine, the DF20ATS5 runs quietly, offering a more peaceful and enjoyable boating experience compared to 2-stroke engines.
• Durable and Low Maintenance: The DF20ATS5 is engineered for durability and requires minimal maintenance, reducing the time and effort boaters need to spend on upkeep.
