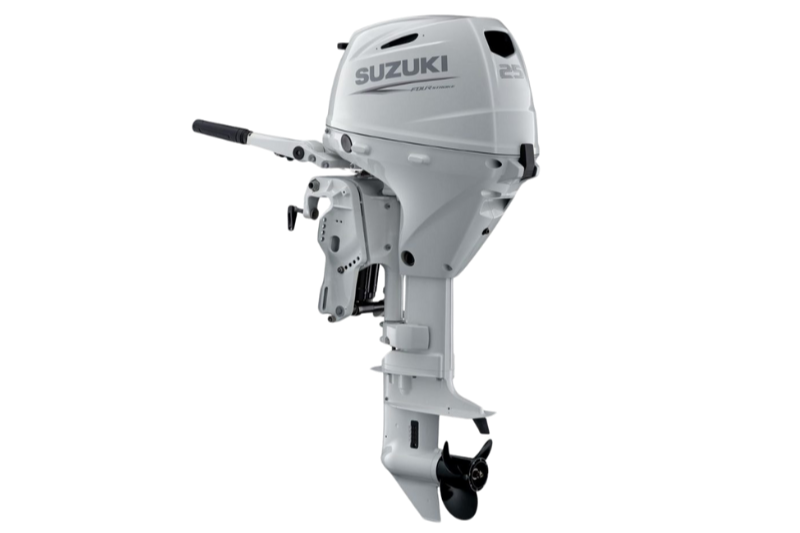

The Suzuki DF25ATHSW5 is a 4-stroke outboard motor designed to deliver great performance, fuel efficiency, and reliability for small to medium-sized boats such as dinghies, tenders, and lightweight fishing boats. Below are the key specifications for the Suzuki DF25ATHSW5:

Key Specifications:

• Engine Type: 4-Stroke, SOHC (Single Overhead Cam), 2 Cylinders
• Displacement: 498 cm³ (30.4 cubic inches)
• Bore x Stroke: 72.0 mm x 70.0 mm
• Max Horsepower: 25 HP @ 5,500 RPM
• Max RPM Range: 5,000 - 6,000 RPM
• Fuel Delivery System: Electronic Fuel Injection (EFI)
• Ignition System: Transistorized CDI (Capacitor Discharge Ignition)
• Starting System: Electric Start
• Trim and Tilt System: Power Tilt
• Gear Ratio: 2.08:1
• Weight (Approx.): 126 lbs (57.2 kg)
• Fuel Tank Capacity: 12L (3.2 gallons) internal fuel tank
• Lubrication System: Wet Sump
• Cooling System: Water-Cooled with Thermostat
• Alternator Output: 12 Amps
• Engine Oil Capacity: 1.1 liters (1.16 US quarts)

Notable Features:

• Electric Start: The DF25ATHSW5 is equipped with an electric start system, providing a reliable and easy way to start the engine with the press of a button.
• Electronic Fuel Injection (EFI): The EFI system ensures optimized fuel efficiency, reduced emissions, and smoother operation. This system also improves engine reliability, especially in varying conditions.
• Power Tilt: The power tilt system allows easy adjustment of the motor's trim, enhancing performance in different water conditions while improving fuel efficiency.
• Lightweight Design: Weighing only 126 lbs (57.2 kg), the DF25ATHSW5 is a lightweight and portable outboard motor, making it ideal for small to medium-sized boats and easy handling during storage or transport.
• Fuel Efficiency: The electronic fuel injection system ensures excellent fuel economy, allowing boaters to enjoy extended trips without frequent refueling.
• Corrosion Protection: The DF25ATHSW5 is built using Suzuki's advanced corrosion-resistant technology, ensuring the motor’s durability and long life even in saltwater environments.
• 360-Degree Rotating Tiller Handle: The 360-degree rotating tiller handle enhances maneuverability, providing precise control and making it easier to navigate tight spaces or narrow waterways.
• Quiet Operation: As a 4-stroke engine, the DF25ATHSW5 operates quietly, reducing noise and providing a more peaceful boating experience compared to traditional 2-stroke engines.
• Durability and Low Maintenance: The DF25ATHSW5 is designed for low maintenance and long-lasting performance, meaning less time spent on engine upkeep and more time on the water.
