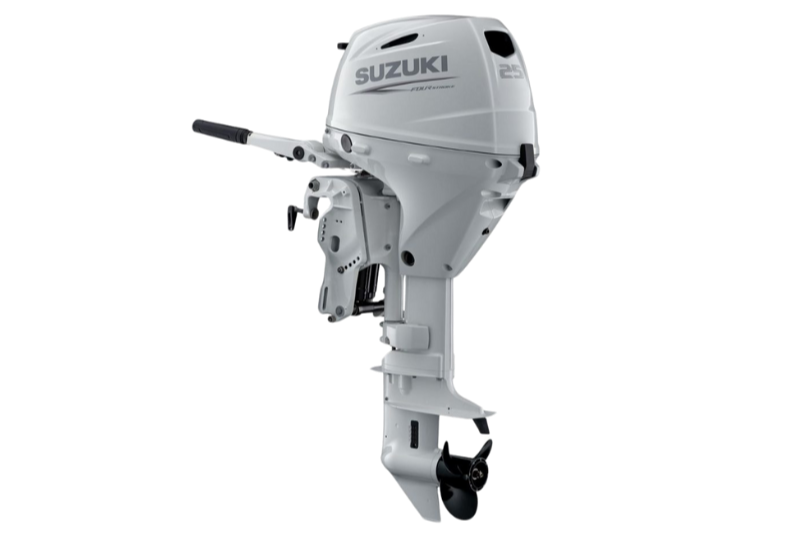

The Suzuki DF25ATSW5 is a reliable, fuel-efficient 4-stroke outboard motor designed for small to medium-sized boats. Known for its lightweight design and robust performance, the DF25ATSW5 is ideal for a variety of recreational boating activities, such as fishing, leisure cruising, and day trips. Below are the key specifications for the Suzuki DF25ATSW5:

Key Specifications:

• Engine Type: 4-Stroke, SOHC (Single Overhead Cam), 2 Cylinders
• Displacement: 498 cm³ (30.4 cubic inches)
• Bore x Stroke: 72.0 mm x 70.0 mm
• Max Horsepower: 25 HP @ 5,500 RPM
• Max RPM Range: 5,000 - 6,000 RPM
• Fuel Delivery System: Electronic Fuel Injection (EFI)
• Ignition System: Transistorized CDI (Capacitor Discharge Ignition)
• Starting System: Electric Start
• Trim and Tilt System: Power Tilt
• Gear Ratio: 2.08:1
• Weight (Approx.): 126 lbs (57.2 kg)
• Fuel Tank Capacity: 12L (3.2 gallons) internal fuel tank
• Lubrication System: Wet Sump
• Cooling System: Water-Cooled with Thermostat
• Alternator Output: 12 Amps
• Engine Oil Capacity: 1.1 liters (1.16 US quarts)

Notable Features:

• Electric Start: The DF25ATSW5 is equipped with an electric start, making it easy to start the motor with the press of a button, offering added convenience for boaters.
• Electronic Fuel Injection (EFI): The EFI system enhances fuel delivery efficiency, providing smoother performance, greater fuel economy, and lower emissions. It also ensures easier cold starts and smoother operation.
• Power Tilt: The power tilt system allows you to adjust the motor's trim quickly and effortlessly, improving handling and performance under varying water conditions.
• Lightweight and Portable: At approximately 126 lbs (57.2 kg), the DF25ATSW5 is lightweight and easy to transport, making it suitable for a wide range of small to medium boats.
• Fuel Efficiency: The electronic fuel injection system optimizes fuel use, ensuring you can spend more time on the water without worrying about frequent refueling.
• Corrosion Protection: The DF25ATSW5 is built with Suzuki's advanced corrosion-resistant technology, making it durable and reliable, especially in saltwater environments.
• 360-Degree Rotating Tiller Handle: The 360-degree rotating tiller provides excellent maneuverability, offering precise control when navigating narrow spaces or tight areas.
• Quiet Operation: As a 4-stroke engine, the DF25ATSW5 operates more quietly than many 2-stroke engines, providing a more enjoyable and peaceful boating experience.
• Low Maintenance: Designed for long-lasting performance and reliability, the DF25ATSW5 is built to require minimal maintenance, reducing downtime and keeping you on the water longer.
