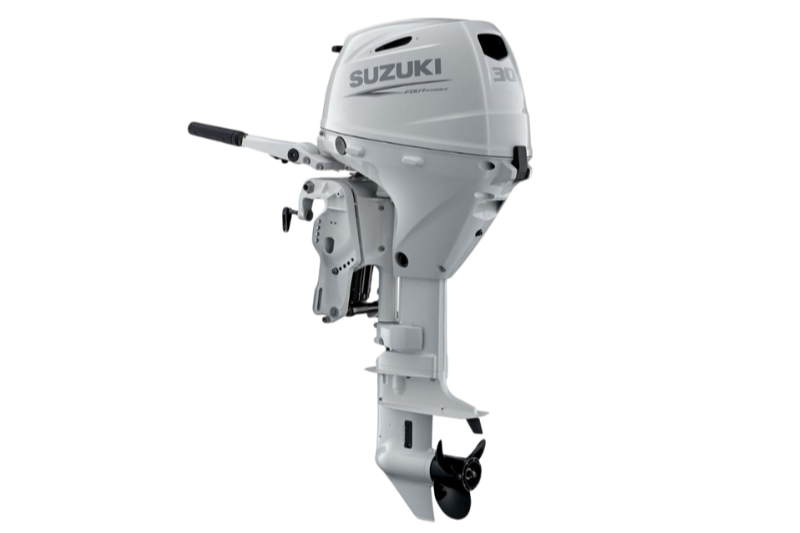

The Suzuki DF30ATHLW5 is a 4-stroke outboard motor that offers excellent fuel efficiency, reliability, and performance for small to mid-sized boats. This model is well-suited for recreational activities like fishing and cruising, providing a combination of power, ease of use, and advanced technology. Below are the key specifications for the Suzuki DF30ATHLW5:

Key Specifications:

• Engine Type: 4-Stroke, SOHC (Single Overhead Cam), 3 Cylinders
• Displacement: 551 cm³ (33.7 cubic inches)
• Bore x Stroke: 65.0 mm x 75.0 mm
• Max Horsepower: 30 HP @ 5,500 RPM
• Max RPM Range: 5,000 - 6,000 RPM
• Fuel Delivery System: Electronic Fuel Injection (EFI)
• Ignition System: Transistorized CDI (Capacitor Discharge Ignition)
• Starting System: Electric Start
• Trim and Tilt System: Power Tilt
• Gear Ratio: 2.08:1
• Weight (Approx.): 167 lbs (75.8 kg)
• Fuel Tank Capacity: 12L (3.2 gallons) internal fuel tank
• Lubrication System: Wet Sump
• Cooling System: Water-Cooled with Thermostat
• Alternator Output: 12 Amps
• Engine Oil Capacity: 1.4 liters (1.48 US quarts)

Notable Features:

• Electric Start: The DF30ATHLW5 features an electric start system for quick and easy engine ignition, reducing the need for manual pull-starting.
• Electronic Fuel Injection (EFI): EFI improves fuel efficiency and ensures smooth performance across various water conditions. It also helps reduce emissions for a more environmentally friendly operation.
• Power Tilt: The power tilt system provides effortless adjustment of the motor’s trim for improved handling and performance, particularly in varying water conditions.
• Lightweight and Compact: Weighing approximately 167 lbs (75.8 kg), the DF30ATHLW5 is lightweight for its class, making it easy to handle, transport, and store.
• Fuel Efficiency: The EFI system helps the DF30ATHLW5 achieve superior fuel economy, allowing for longer trips with fewer stops to refuel.
• Corrosion Resistance: Built with Suzuki’s advanced corrosion-resistant technology, the DF30ATHLW5 is highly durable and designed to perform reliably in both freshwater and saltwater environments.
• 360-Degree Rotating Tiller Handle: The 360-degree rotating tiller offers increased maneuverability, allowing for precise control in tight spaces or while docking.
• Quiet Operation: As a 4-stroke engine, the DF30ATHLW5 runs quieter than 2-stroke outboards, providing a more enjoyable and peaceful boating experience.
• Low Maintenance: Designed for long-lasting reliability, the DF30ATHLW5 requires minimal maintenance, helping to reduce service time and costs over the lifespan of the engine.
