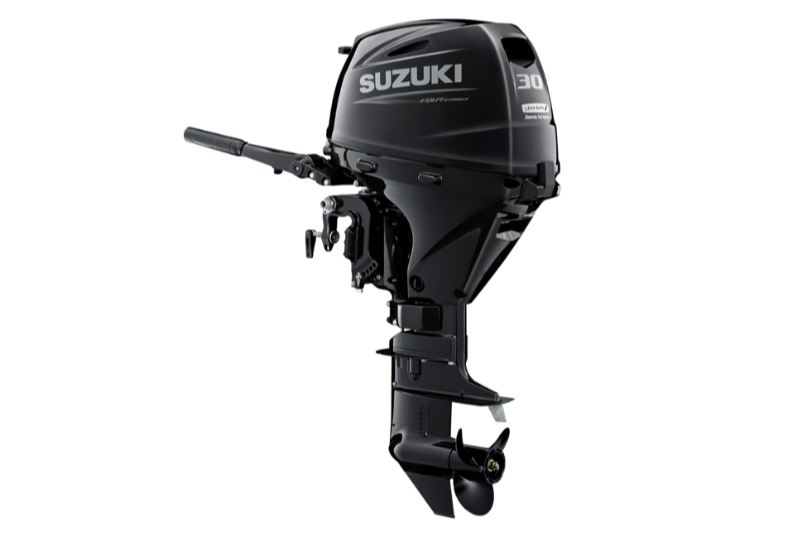

The Suzuki DF30ATL5 is a compact and efficient 4-stroke outboard motor, designed for small to medium-sized boats, ideal for recreational activities such as fishing and cruising. It provides reliable performance, advanced technology, and fuel efficiency. Below are the key specifications for the Suzuki DF30ATL5:

Key Specifications:

• Engine Type: 4-Stroke, SOHC (Single Overhead Cam), 3 Cylinders
• Displacement: 551 cm³ (33.7 cubic inches)
• Bore x Stroke: 65.0 mm x 75.0 mm
• Max Horsepower: 30 HP @ 5,500 RPM
• Max RPM Range: 5,000 - 6,000 RPM
• Fuel Delivery System: Electronic Fuel Injection (EFI)
• Ignition System: Transistorized CDI (Capacitor Discharge Ignition)
• Starting System: Electric Start
• Trim and Tilt System: Power Tilt
• Gear Ratio: 2.08:1
• Weight (Approx.): 167 lbs (75.8 kg)
• Fuel Tank Capacity: 12L (3.2 gallons) internal fuel tank
• Lubrication System: Wet Sump
• Cooling System: Water-Cooled with Thermostat
• Alternator Output: 12 Amps
• Engine Oil Capacity: 1.4 liters (1.48 US quarts)

Notable Features:

• Electric Start: The DF30ATL5 comes with an electric start system, allowing for easy and reliable ignition with the push of a button, eliminating the need for manual pull-starting.
• Electronic Fuel Injection (EFI): The EFI system enhances fuel efficiency, ensures smooth acceleration, and provides a more environmentally friendly operation by reducing emissions.
• Power Tilt: The power tilt system makes it easier to adjust the motor's trim, improving overall performance in varying water conditions and optimizing fuel efficiency.
• Lightweight Design: At approximately 167 lbs (75.8 kg), the DF30ATL5 is lightweight for its power output, making it easy to handle, transport, and store, while still providing excellent performance.
• Fuel Efficiency: The EFI system optimizes fuel consumption, allowing boaters to enjoy longer trips with fewer refueling stops.
• Corrosion Resistance: Designed with Suzuki’s advanced corrosion-resistant technology, the DF30ATL5 is highly durable, making it suitable for both saltwater and freshwater environments.
• 360-Degree Rotating Tiller Handle: The 360-degree rotating tiller provides excellent maneuverability, especially in tight spaces, providing easy and precise handling for the driver.
• Quiet Operation: As a 4-stroke engine, the DF30ATL5 offers quieter operation than 2-stroke engines, ensuring a more peaceful and enjoyable boating experience.
• Low Maintenance: The DF30ATL5 is built for long-term reliability, and its design minimizes maintenance needs, reducing both time and costs associated with upkeep.
